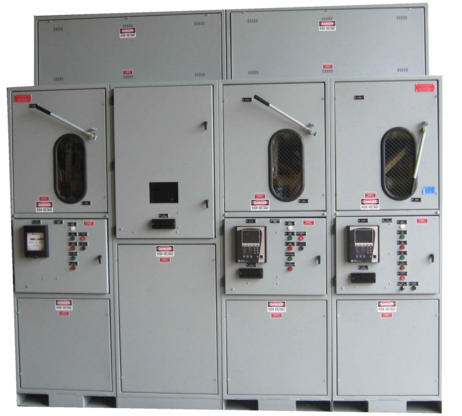

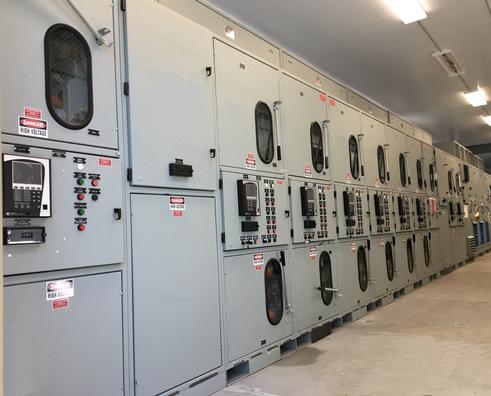

switchgear

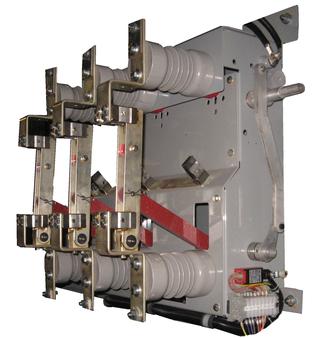

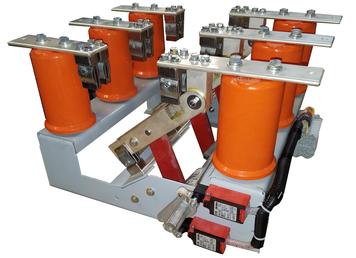

grounding visible disconnect switches
SOME OF THE FEATURES ARE:
• Ability to open and close the vacuum circuit breaker
when the visible disconnect blades are open and
grounded.
• Mechanically and electrically interlocked to prevent
operation of the disconnect switch with a closed
vacuum circuit breaker.
• Control module will still electrically trip the breaker for 30 seconds
after a control power failure.
• Adapter kit available for multiple connections on the
ISM breaker input. Part Number: A-14402
FOR MORE DETAILS CLICK THE BUTTON BELOW
Ratings
• Rated voltage 15kv
• Rated continuous current 800 amps
• Rated short-time withstand current 20 ka
• Rated peak withstand current 52 ka
high voltage breakers and loadbreak break switches
used and reconditioned electrical parts

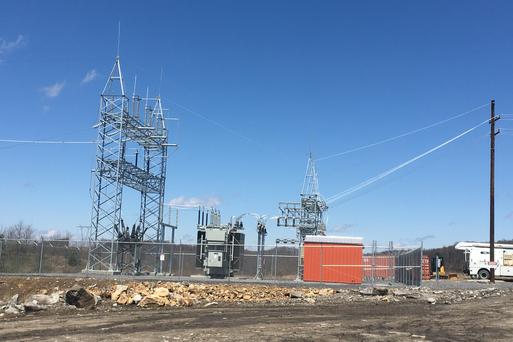

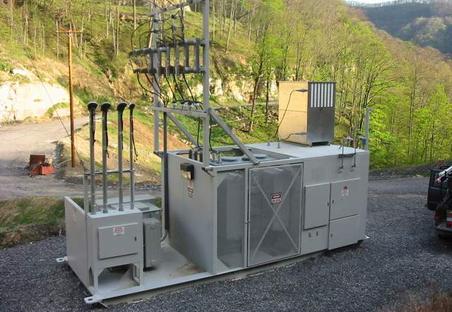

substations

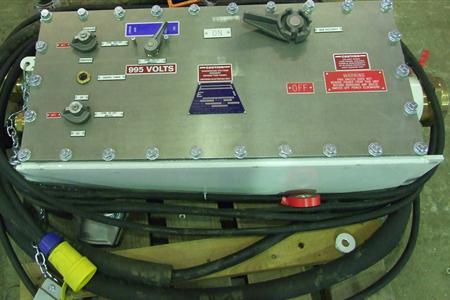

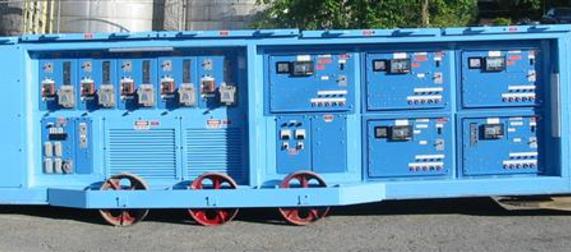

power centers
LOW VOLTAGE GROUND MONITORS.
PLUGS & RECEPTACLES.
CUSTOM DESIGNED SINGLE PHASE AND THREE PHASE DRY-TYPE TRANSFORMERS. VOLTAGES RANGING FROM 12470- 120 VOLTS.
WE ALSO CAN REPAIR OTHER MANUFACTURES TRANSFORMERS
CAPACITOR TRIP DEVICES
AMERICAN ELECTRIC
EQUIPMENT, INC.

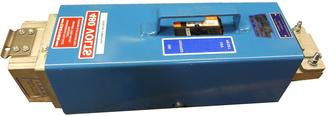

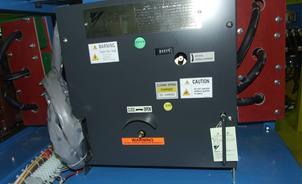

ISOVAC 800 hIGH VOLTAGE VACUUM ISOLATION BREAKER
LOW VOLTAGE GROUND MONITOR Splitter.
CUSTOM DESIGNED TRANSFORMERS.
WE CARRY A FULL LINE OF NEW AND RECONDITIONED YASKAWA SF6 GAS MEDIUM AND HIGH VOLTAGE CIRCUIT BREAKERS. IF NEEDED, YOU CAN HAVE YOUR SF6 BREAKER REPAIRED BY YASKAWA QUALITY TRAINED SERVICE TECHNICIANS ON SITE.
WE ALSO REPAIR OTHER MANUFACUTERS CIRCUIT BREAKERS AS WELL.
explosion proof enclosures
HIGH VOLTAGE GROUND MONITORS.
Electrical Parts
INTRINSICALLY SAFE RELAY

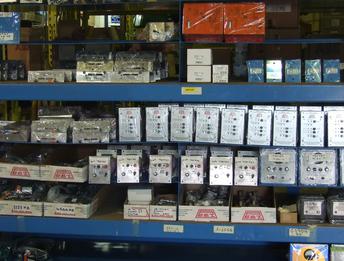

WE HAVE A VARIETY OF USED AND RECONDITIONED PARTS RANGING FROM GROUND FAULTS TO THREE-PHASE TRANSFORMERS. NOT ONLY DO WE HAVE OUR PARTS, WE HAVE A VAST ASSORTMENT OF OTHER MANUFACTURERS AS WELL. IF YOU ARE LOOKING FOR A PARTICULAR ITEM PLEASE CALL OR EMAIL AND WE WILL TRY AND FILL YOUR REQUEST.

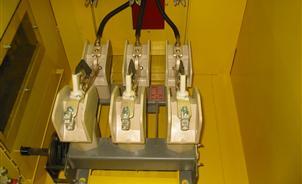

WE SELL AND RECONDITION HIGH VOLTAGE SWITCHES. IF NEEDED YOU MAY ALSO HAVE YOUR SWITCH REPAIRED BY OUR TECHNICIANS AS WELL. ALL SWITCHES ARE REPAIRED AND TESTED TO MEET THE MANUFACTURER'S RECOMMENDATIONS.
